TEST BENCH

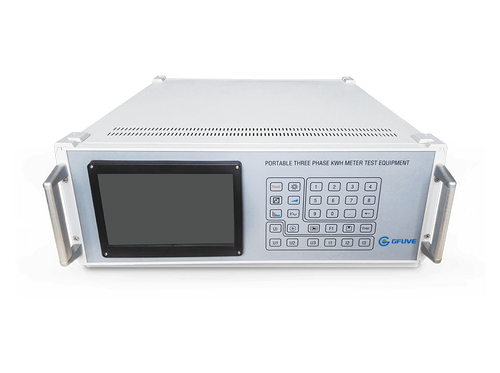

Tel: 010-85782698 Fax: 010-85781298 Website：www.gfuvegroup.com Email：info@gfuve.com Postal code：100025 Model: GF302D3 (PORTABLE THREE PHASE ENERGY METER TEST BENCH) Mechanical meter / Electronic meter，Three phase /Single phase Precision：0.02%, 0.05% Power Supply：Single phase AC 85-265V, frequency 50/60Hz. AC Voltage Output：57.7V, 100V, 220V, 380V； max 500V or 69.3V, 120V, 240V, 480V( optional); max 600V AC Current Output（Output load）： 200mA, 1A, 5A, 20A, 100A; max 120A Frequency：40-70HzPhase angle adjust : from 0°to 359.999°. Harmonic number： 2-63times Power Pulse output: active pulse, reactive pulse 5V, 10mA Power Pulse input: support active and reactive pulse, the highest frequency power pulse input is 200K. Communication Port: RS232, USB 2.0 , Host Weight:18 FUNCTIONS： ■ 4 quadrant measurement; ■ Predefined multiple load points; ■ User friendly menu guided operation; ■ Verification of the energy registration; ■ 1P2W, 1P3W, 3P3W, 3P4W can be set; ■ Reference meter and power source integration; ■ Easy verification and analysis of meter installations; ■ Automatic operation without need of an external PC; ■ Verification of the load conditions on metering installation; ■ Programmable many kinds of testing energy meter schemes; ■ Automatic testing mechanical meter and electronic meter error; ■ Voltage, current, frequency, phase angle, power factor, harmonics can be regulated; ■ Vector diagram display and phase sequence indication on integrated colored screen; ■ Especially configured USB stick for storage of customer data and measurement results; APPLICATION ■ Power plant;■ Electrical laboratory; ■ Energy meter R & D; ■ Watt-hour meter factory; ■ Metrological service center; ■ Electricity power bureau & power company; ■ National Metrology and testing department; ■ Electrical Department of industrial and mining enterprises; https://www.gfuvegroup.com/energy-meter-test-equipment/portable-three-phase-energy-meter-test-bench.html
