Sector Antenna
5.1-5.9GHz15dbi120degVerticalSectorDirectionalAntenna(CAS5815-120)Applications:

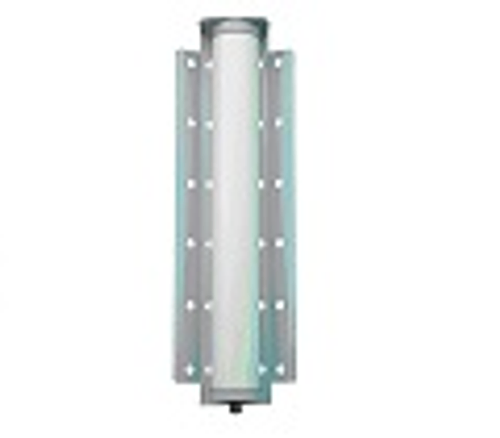

5.1-5.9GHz 15dbi 120deg Vertical Sector Directional Antenna(CAS5815-120)
APPLICATIOINS:
l 5.1~ 5.9 GHz Applications
l 5.8 GHz UNII/ISM Band Application
l IEEE
l Directional and multipoint applications
l Wi-Max, CDMA,
l Public Wireless Hotspot
l Wireless LAN systems
FEATURES
l Superior performance
l Light weight
l All weather operation
l DC Short lightning protection
l Installed for vertical
l Includes tilt and swivel mast mount
l Frequency Ultra-wide
SPECIFICATIONS
|
|
5100 - 5900 MHz |
|
V.S.W.R |
≦1.5 |
|
Return Loss |
≧-12db |
|
Gain |
15dBi |
|
Polarization |
Vertical |
|
Maximum Power |
50W |
|
Vertical Beam-with |
16∘ |
|
Horizontal Beam-with |
120∘ |
|
Impedance |
50Ω |
|
Connector |
N-Female |
-
