TB-060 組合固定式端子台

TB-060 組合固定式端子台

1. 額定電流: 60安培 (共有60安培~400安培可供選購)
2. 額定電壓: 600伏特
3. 外觀尺寸: 62.5*52*34mm (節距長*寬*高),
4. 適用導線: 16mm2 / AWG 6
5. 螺絲大小: M6
6. 塑膠本體採用耐衝擊與防火耐燃等級UL94-V2的工程塑膠原料來製造
7. 堅固耐用的組合固定式設計提供客戶組裝成任意電氣迴路數
8. 端子台兩端設計固定用螺絲孔可安裝在面板上或自由浮動.
9. 附有碼標紙條供電路標示或書寫
10. 附透明保護上蓋防塵並避免潛在的觸電危險
11. 可廣氾應用於各種接線場合, 例如: 配電盤, 控制面板, 變壓器,機械設備, 不斷線系統, 發電機組, 冷凍空調, 電池組, 照明設備, 船舶飛機等等
12. 網址 : http://www.shining.com.tw/2CT/CT_terminal_blocks_TBa.htm

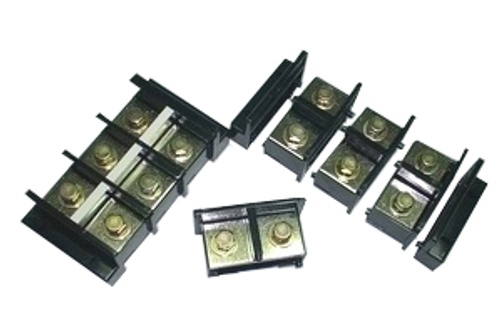

TB-060 Assembly Barrier Terminal Block

•Item number: TB-060

•Rating: 600V, 060A

•Size: 20.5+42.0*52.0*34.0mm (L*W*H),

•Wire Size: 15mm2 / AWG6

•Screw Size: M6

•Sectional or one-piece construction. Easy and Flexible to form multipole assembly.

•Panel Mounting with mounting holes and screws.

•Marking paper strips and protective covers are available.

•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.

•Molded from UL94-V2 material with excellent flame- and shock-resistance

•Packing: 50pcs/box, 400pcs/8boxes/N.W. :16.0kgs /carton
