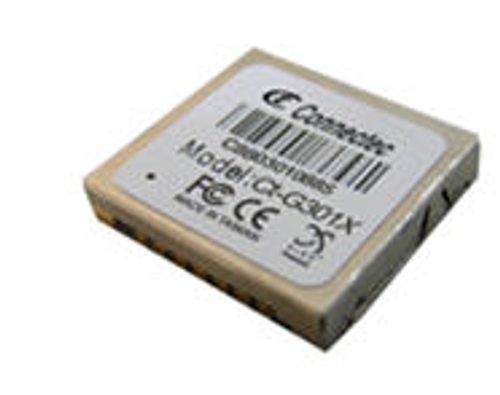

Ct-G301X GPS 模組

Ct-G301Xmoduleisahighsensitivity,verycompactSurfaceMountDevice(SMD).

#gps#module#modem#lowe#power#starIII#sirf

Ct-G301X module is a high sensitivity, high gain, low power and very compact Surface Mount Device (SMD).
This 20-channel global positioning system (GPS) receiver is
designed for a broad spectrum of OEM applications and is based on the fast and deep GPS signal search capabilities of SiRstarIII GSC3f/LPx architecture, consuming.

Ct-G301X is designed to allow quick and easy integration into GPS-related applications, especially for compact size devices, such as:

  • PDA, Pocket PC, and other computing devices
  • Fleet Management /Asset Tracking
  • AVL and Location-Based Services
  • Hand-Held Device for Personal Positioning and Navigation

Hardware and Software

  • Based on the high performance features of the SiRFStar III GSC3f/LPx chipset.
  • Built-in high gain amplifier and band pass filter
  • RoHS compliant (lead-free)
  • Compact module size for easy integration: 15x14x2.8 mm (590.6x551.2x110.2 mil).
  • SMT pads allow for fully automatic assembly processes equipment and reflow soldering
  • SiRF Client AGPS support















Performance

  • Cold/Warm/Hot Start Time: 35 / 35 / 1 sec.
  • Reacquisition Time: 0.1 second
  • RF Metal Shield for best performance in noisy environments
  • Multi-path Mitigation Hardware
  • Enhanced Navigation Performance
  • Improved Jamming Mitigation
  • Improved Ephemeris Availability















Interface

  • TTL level serial port for GPS communications interface
  • Protocol: NMEA-0183/SiRF Binary (default NMEA)
  • Baud Rate: 4800, 9600, 19200 bps (default 9600)













Advantages

  • Ideal for compact size devices
  • Data / Power / RF through surface mount pads
  • Cost saving through elimination of RF and board to board digital connectors
  • Flexible and cost effective hardware design for different application requirements
  • Secure SMD PCB mounting method
