API600 閘閥

API600GateValves,Standardbore,Risingstem,nonrisinghandwheeldesign,O.S.&Yoke,FlexiblewedgeDESIGNC

#astm#class#design#mss#face#api#fig

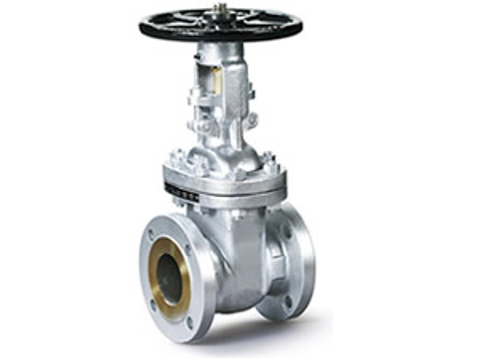

API600 Gate Valves, Standard bore, Rising stem, non rising handwheel design, O.S. & Yoke, Flexible wedge

DESIGN CODES :

Size Range	2”~48”
Pressure	Class150/300/600/900
Body Material	ASTM A216 WCB
Stem	ASTM A182 F6
Wedge	ASTM A216 WCB + F6
Seat	ASTM A105 + Stellite#6
Back Seat	ASTM A276 410
Face To Face	ASME B16.10
Flange	ASME B16.5 RF Flange Ends Finished Surface : 125-250 AARH
Specifications	Design as per API600 Marking: MSS SP-25
Valve Test	API 598
Operation	Full Bore, Handwheel, Gear box
Remarks	Other Trim# are upon special request
